Basic Call Processing - Typical Packet Call Home : www.sharetechnote.com

In this section, I will go through a typical protocol sequence of LTE packet call. This will be the backbone structure for all other call processing.

Following is the over protocal sequence being exchanged between UE and Network. Actually understanding all the details of these steps would be the goal of your whole LTE career.

1) <Cell Search and Detection>

2) MIB

3) SIB 1

4) <Check Cell Selection Criteria>

5) SIB 2 and other SIBs

6) RRC : PRACH Preamble

7) RRC : RACH Response

8) RRC : RRC Connection Request

9) RRC : RRC Connection Setup

10) RRC : RRC Connection Setup Complete + NAS : Attach Request + ESM : PDN Connectivity Request

11) RRC : DL Information Transfer + NAS : Authentication Request

12) RRC : UL Information Transfer + NAS : Authentication Response

13) RRC : DL Information Transfer + NAS : Security Mode Command

14) RRC : UL Information Transfer + NAS : Security Mode Complete

15) RRC : Security M ode Command

16) RRC : Security Mode Complete

O1) RRC : UE Capability Enquiry

O2) RRC : UE Capability Information

17) RRC : RRC Connection Reconfiguration + NAS : Attach Accept + NAS : Activate Default EPS Bearer Context Req

18) RRC : RRC Connection Reconfiguration Complete + NAS : Attach Complete + NAS : Activate Default EPS Bearer Context Accept

19) RRC : RRC Connection Release

20) <Perform Neibourcell Measurement>

21) <Check Cell Reselection Criteria >

22) < MO or MT call > : In MT call, Paging should be sent.

23) RRC : PRACH Preamble

24) RRC : RACH Response

25) RRC : RRC Connection Request

26) RRC : RRC Connection Setup

27) RRC : RRC Connection Setup Complete + NAS : Service Request

28) RRC : Security Mode Command

29) RRC : Security Mode Complete

30) RRC : RRC Connection Reconfiguration + NAS : Activate Dedicated EPS Bearer Context Request

31) RRC : RRC Connection Reconfiguration Complete + NAS : Activate Dedicated EPS Bearer Context Accept

32) RRC : RRC Connection Release

Basic State Machine

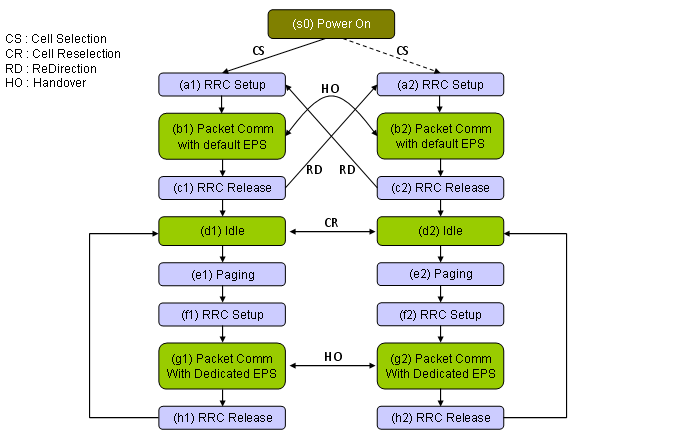

Following diagram shows a possible state machine that a UE would go through. The state transition in this post will be about (s0)->(a)-> (b1) -> (c1) -> (d1) -> (e1) -> (f1) -> (g1) -> (h1). Most of other transition will be described in "Handover" page.

Note for Step 23)~32) : Intial Registration and Default EPS Bearer Setup procedure would be common to almost all LTE network. Of course, there would be a small variations but overall concept would be almost same. But the procedure after <Idle> (Step 23~32) would be quite different among Network Operators. Following would be two major variations.

Setup RRC Connection, RRC Connection Reconfiguration without creating any dedicated EPS Bearer.(In this case, UE uses the existing Default EPS bearer for traffic).
Setup RRC Connection, RRC Connection Reconfiguration with a dedicated EPS Bearer.(In this case, Ue uses the existing Default EPS bearer or Dedicated EPS Bearer depending on situation).

The example test sequence in this case shows the second case,

Big Picture First

Depending on which level you are working on in UE development/Test procedure, the amount of knowledge you need to know would be different. But I think there are a couple of big pictures that may help almost anybody working in full protocol stack.

First big picture I would like to introduce is the channel mapping as shown below. Just try to pick any RRC messages and try to follow the arrow for the message. If you read those pages about MAC and RLC, it will remind you of a lot of detailed information.

<< Overall Sequence and Layer Mapping >>

Following is a sequence diagram showing not only the message but also basic configurations of each layer. More detailed description of each layer in the context of full protocol stack will be explained in "Full Stack" section.

Just read through this sequence whenever you have time until you can duplicate the sequence without looking into this again. This can be a good framework for your study and good guide for troubleshooting.

<< Downlink Channel Map >>

The diagram you saw above a kind of message flow(event diagram) in time sequence. The diagram shown below is not a time based, but it shows the channel mapping (or data flow across the full protocol stack). Pick one of the message from the diagram shown above and try to find right route for this digram and see how much details you can add.

For example, if you picked the message "RRC Connection Setup", the start point would be "RRC Message msg4".

Following is a tabular presentation of DL Channel Map. (LCID and TrCH Number would be different depending on the network or Network Simulator)

RB	Lo CH	PDCP	RLC	Lo CH	LCID	MAC Hdr	HARQ	RNTI	Tr CH
	PCCH		TM	PCCH	N/A	NONE	NONE	NONE	PCH
	BCCH 0		TM	BCCH 0	N/A	NONE	NONE	NONE	BCH 0
	BCCH 1		TM	BCCH 1	N/A	NONE	Broadcast	SI RNTI	DL SCH 0
	RA_RES		TM	RA_RES	N/A	NONE	NONE	RA RNTI	DL SCH 1
SRB0	DL CCCH	USED	TM	DL CCCH	0	NONE	NORMAL	T-CRNTI	DL SCH 1
SRB1	DL DCCH 0	USED	AM	DL DCCH 0	1	NORMAL	NORMAL	CRNTI	DL SCH 1
SRB2	DL DCCH 1	USED	AM	DL DCCH 0	2	NORMAL	NORMAL	CRNTI	DL SCH 1
DRB 0	DL DTCH0	USED	UM/AM	DL DTCH0	3	NORMAL	NORMAL	CRNTI	DL SCH 1
DRB 1	DL DTCH1	USED	UM/AM	DL DTCH1	4	NORMAL	NORMAL	CRNTI	DL SCH 1
DRB 2	DL DTCH2	USED	UM/AM	DL DTCH2	5	NORMAL	NORMAL	CRNTI	DL SCH 1

<< Uplink Channel Map >>

Following is a tabular presentation of DL Channel Map. (LCID and TrCH Number would be different depending on the network or Network Simulator)

RB	Lo CH	PDCP	RLC	Lo CH	LCID	MAC Hdr	HARQ	RNTI	Tr CH
	RA_PRE		TM	RA_PRE	N/A	NONE	NONE	NONE	UL SCH 0
SRB0	UL CCCH	USED	TM	UL CCCH	0	NONE	NORMAL	T-CRNTI	UL SCH 0
SRB1	UL DCCH 0	USED	AM	UL DCCH 0	1	NORMAL	NORMAL	CRNTI	UL SCH 0
SRB2	UL DCCH 1	USED	AM	UL DCCH 0	2	NORMAL	NORMAL	CRNTI	UL SCH 0
DRB 0	UL DTCH0	USED	UM/AM	UL DTCH0	3	NORMAL	NORMAL	CRNTI	UL SCH 0
DRB 1	UL DTCH1	USED	UM/AM	UL DTCH1	4	NORMAL	NORMAL	CRNTI	UL SCH 0
DRB 2	UL DTCH2	USED	UM/AM	UL DTCH2	5	NORMAL	NORMAL	CRNTI	UL SCH 0

Channel Mapping Table throughout Call Processing

This is only an example case and Mapping (especiall LoCH No) can vary depending on situations. The point is that it will be really helpful for your troubleshooting or test case creation if you create this kind of table for your case.

Message	RB	Lo CH	LoCH No	LCID
MIB	-	BCCH	0	-
SIB 1	-	BCCH	1	-
SIB 2	-	BCCH	1	-
RRC : PRACH Preamble	-	-	-	-
RRC : RACH Response	-	-	-	-
RRC : RRC Connection Request	SRB0	UL CCCH	0	0
RRC : RRC Connection Setup	SRB0	DL CCCH	0	0
RRC : RRC Connection Setup Complete + NAS : Attach Request + ESM : PDN Connectivity Request	SRB1	UL DCCH	0	1
RRC : DL Information Transfer + NAS : Authentication Request	SRB1	DL DCCH	0	1
RRC : UL Information Transfer + NAS : Authentication Response	SRB1	UL DCCH	0	1
RRC : DL Information Transfer + NAS : Security Mode Command	SRB1	DL DCCH	0	1
RRC : UL Information Transfer + NAS : Security Mode Complete	SRB1	UL DCCH	0	1
RRC : Security Mode Command	SRB1	DL DCCH	0	1
RRC : Security Mode Complete	SRB1	UL DCCH	0	1
RRC : RRC Connection Reconfiguration	SRB1	DL DCCH	0	1
RRC : RRC Connection Reconfiguration Complete	SRB1	UL DCCH	0	1
RRC : UL InformationTransfer + NAS : Attach Complete + NAS : Activate Default EPS Bearer	SRB2	UL DCCH	1	2
RRC : UL Information Transfer + ESM : PDN Connectivity Request	SRB2	UL DCCH	1	2

Note : Refer to TS 36.331 - 9.1.1 Logical channel configurations

Cell Configuration and Channel Configuration during Call Processing

Config 1) Activate Cell Physicall Layer

1) MIB

Config 2) Activate PHY, MAC, RLC for SIB Transmission (BCCH-DL DSCH)

2) SIB 1

3) SIB 2

Config 3) Configure PHY, MAC for PRACH Reception and RACH Response Transmission

4) RRC : PRACH Preamble

5) RRC : RACH Response

Config 3) Configure PHY, MAC, RLC for Msg3 (RRC Connection Request) Reception (UL-CCCH)

6) RRC : RRC Connection Request

Config 4) Configure MAC, RLC, PDCH for DL DCCH, UL DCCH

7) RRC : RRC Connection Setup

8) RRC : RRC Connection Setup Complete + NAS : Attach Request + ESM : PDN Connectivity Request

9) RRC : DL Information Transfer + NAS : Authentication Request

10) RRC : UL Information Transfer + NAS : Authentication Response

11) RRC : DL Information Transfer + NAS : Security Mode Command

12) RRC : UL Information Transfer + NAS : Security Mode Complete

Config 5) Configure PDCP for Integrity, Ciphering (We may disable Integiry/Ciphering for some test environment)

13) RRC : Security Mode Command

14) RRC : Security Mode Complete

15) RRC : RRC Connection Reconfiguration + NAS : Attach Accept + NAS : Activate Default EPS Bearer Context Req

Config 6) Configure MAC, RLC, PDCP for DL/UL DTCH+DCCH

16) RRC : RRC Connection Reconfiguration Complete + NAS : Attach Complete + NAS : Activate Default EPS Bearer Context Accept

17) RRC : RRC Connection Release

Config 7) Deactivate all the channels related to DCCH, DTCH

Config 8) Activate channels for PCCH

< MO or MT call > : In MT call, Paging should be sent.

Config 9) Configure PHY, MAC for PRACH Reception and RACH Response Transmission

18) RRC : PRACH Preamble

19) RRC : RACH Response

Config 10) Configure PHY, MAC, RLC for Msg3 (RRC Connection Request) Reception (UL-CCCH)

20) RRC : RRC Connection Request

Config 11) Configure MAC, RLC, PDCH for DL DCCH, UL DCCH

21) RRC : RRC Connection Setup

22) RRC : RRC Connection Setup Complete + NAS : Service Request

23) RRC : Security Mode Command

24) RRC : Security Mode Complete

25) RRC : RRC Connection Reconfiguration + NAS : Activate Dedicated EPS Bearer Context Request

Config 12) Configure MAC, RLC, PDCP for DL/UL DTCH+DCCH

26) RRC : RRC Connection Reconfiguration Complete + NAS : Activate Dedicated EPS Bearer Context Accept

27) RRC : RRC Connection Release

Now in Very Detailed Picture

Now the next step is to describe each of the steps in as much detail as possible. The more in detail you can describe, the easier the development, testing, troubleshooting will be. There are many steps I couldn't describe here because the most of steps not described here would be related to company confidentials (Of course, you can say "Every details are in 3GPP specification". Yes, that's true, but 3GPP says only about "What to do", it doesn't say much about "How to do". In real implementation, this "How to do" part is as important as "What to do") You can take this as a minimum of possible-detailed description. Going through this table, think about how much additional comments you think you can put in 'Memo' column. (If you want to see what's really happening in real network, see the live air example in Full Stack page)

Step	Direction	Message	Memo
1	UE <--- SS	MIB
2	UE <--- SS	SIB1
3	UE <--- SS	SIB2,3 and others
4	UE ---> SS	PRACH
5	UE <--- SS	RACH Response
6	UE ---> SS	RRC Connection Request
	< UE >	UE MAC start mac-ContentionResolutionTimer	3GPP 36.321 5.1.5 CR Timer value is set in SIB2
7	UE <--- SS	ACK (PHICH)
8	UE <--- SS	Contention Resolution	SS must send CR before CRtimer get expired
	< UE >	UE MAC stop mac-ContentionResolutionTimer
9	UE <--- SS	RRC Connection Setup
10	UE ---> SS	ACK (PUCCH)
11	UE ---> SS	Scheduling Request(PUCCH)
12	UE <--- SS	UL Grant (DCI 0, PDCCH)
13	UE ---> SS	RRC Connection Setup Complete + Attach Requeset + (PDN Conn Request)
14	UE <--- SS	ACK(PHICH)
15	UE <--- SS	RLC ACK
16	UE <--- SS	Authentication Request
17	UE ---> SS	ACK (PUCCH)
18	UE ---> SS	Scheduling Request(PUCCH)
19	UE <--- SS	UL Grant (DCI 0, PDCCH)
20	UE ---> SS	RLC ACK
21	UE ---> SS	Scheduling Request(PUCCH)
22	UE ---> SS	UL Grant (DCI 0, PDCCH)
23	UE ---> SS	Authentication Response
24	UE <--- SS	ACK(PHICH)
25	UE <--- SS	RLC ACK
26	UE <--- SS	NAS Security Mode Command
27	UE ---> SS	ACK (PUCCH)
28	UE ---> SS	Scheduling Request(PUCCH)
29	UE <--- SS	UL Grant (DCI 0, PDCCH)
30	UE ---> SS	RLC ACK
31	UE ---> SS	Scheduling Request(PUCCH)
32	UE <--- SS	UL Grant (DCI 0, PDCCH)
33	UE ---> SS	NAS Security Mode Complete
34	UE <--- SS	ACK(PHICH)
35	UE <--- SS	RLC ACK
36	UE <--- SS	RRC Security Mode Command
37	UE ---> SS	ACK (PUCCH)
38	UE ---> SS	Scheduling Request(PUCCH)
39	UE <--- SS	UL Grant (DCI 0, PDCCH)
40	UE ---> SS	RLC ACK
41	UE ---> SS	Scheduling Request(PUCCH)
42	UE <--- SS	UL Grant (DCI 0, PDCCH)
43	UE ---> SS	RRC Security Mode Complete
44	UE ---> SS	ACK (PHICH)
45	UE ---> SS	RLC ACK
46		< Many other message can be added here depending on NW >
47	UE <--- SS	RRC Connection Reconfiguration + Attach Accept + Activate Default EPS Bearer Context Request
48	UE ---> SS	ACK (PUCCH)
49	UE ---> SS	Scheduling Request(PUCCH)
50	UE <--- SS	UL Grant (DCI 0, PDCCH)
51	UE ---> SS	RLC ACK
52	UE ---> SS	RRC Connection Reconfiguration + Attach Complete + Activate Default EPS Bearer Context Accept
53	UE <--- SS	ACK (PHICH)
54	UE <--- SS	RLC ACK
55		< IP Data Traffic if needed >
58	UE <--- SS	RRC Connection Release
59	UE	< Now UE should be in IDLE mode >
60	UE	Decode MIB
61	UE	Decode SIB1
63	UE	Decode or Doesn't Decode Other SIBs based on SystemInfoValueTag on SIB1
64	UE <--- SS	Paging
65	UE ---> SS	PRACH
66	UE <--- SS	RACH Response
67	UE ---> SS	RRC Connection Request
68	UE <--- SS	ACK (PHICH)
69	UE <--- SS	Contention Resolution
70	UE <--- SS	RRC Connection Setup
71	UE ---> SS	ACK (PUCCH)
72	UE ---> SS	Scheduling Request(PUCCH)
73	UE <--- SS	UL Grant (DCI 0, PDCCH)
74	UE ---> SS	RRC Connection Setup Complete + Service Requeset
75	UE <--- SS	ACK(PHICH)
76	UE <--- SS	RLC ACK
77	UE <--- SS	RRC Connection Reconfiguration + Activate Dedicated EPS Bearer Context Request
78	UE ---> SS	ACK (PUCCH)
79	UE ---> SS	Scheduling Request(PUCCH)
80	UE <--- SS	UL Grant (DCI 0, PDCCH)
81	UE ---> SS	RLC ACK
82	UE ---> SS	RRC Connection Reconfiguration + Activate Dedicated EPS Bearer Context Accept
83	UE <--- SS	ACK (PHICH)
84	UE <--- SS	RLC ACK
85		< IP Data Traffic if needed >

Overall Comparision with WCDMA

Even though overall sequence is pretty similar to WCDMA sequence, there are a couple of different points comparing to WCDMA sequence.

First point you have to look at is that in LTE 'RACH Preamble' is sent as a part of MAC Layer process. As you know RACH process was there in WCDMA, but in WCDMA it was a part of Physical layer process.

Another part I notice is that RRC Connection Setup Complete and Attach Request is carried in a single step. This is only one example. In LTE, many of NAS Message is piggybacked on RRC Messages. This would make message decoding/encoding process complicated but it would be efficient to reduce the number of message exchange between UE and eNodeB.

These are the differences you can notice just by looking at the message type, there are more differences you will find when you go into the information elements of each messages as you will see in following sections.

Next thing you will notice would be that there are much less SIBs being transmitted in LTE comparting to WCDMA. Of course there are more SIBs not being transmitted in this sequence (LTE has 10 SIBs in total), but with only these two SIBs it can transmit all the information to let UE camp on the network. In WCDMA there are a total 18 SIBs and in most case we used at least SIB1,3,5,7,11 even in very basic configurations. And some of the WCDMA SIBs like SIB5 and 11 has multipe segments. In LTE, number of SIB is small and none of them are segmented.

MIB

MIB in LTE has very minimal information (This is a big difference from WCDMA MIB) . The only information it carries are

i) BandWidth

ii) PHICH

iii) SystemFrameNumber

Of course the most important information is "BandWidth".

According to 36.331 section 5.2.1.2, the MIB scheduling is as follows :

The MIB uses a fixed schedule with a periodicity of 40 ms and repetitions made within 40 ms. The first transmission ofthe MIB is scheduled in subframe #0 of radio frames for which the SFN mod 4 = 0, and repetitions are scheduled insubframe #0 of all other radio frames.

SIB 1

SIB 1 in LTE contains the information like the ones in WCDMA MIB & SIB1 & SIB3. The important information on SIB 1 is

i) PLMN

ii) Tracking Area Code

iii) Cell Selection Info

iv) Frequency Band Indicator

v) Scheduling information (periodicity) of other SIBs

You may notice that LTE SIB1 is very similar to WCDMA MIB.

Especially at initial test case development, you have to be very careful about item v). If you set this value incorrectly, all the other SIBs will not be decoded by UE. And as a result, UE would not recognize the cell and show "No Service" message.

According to 36.331 section 5.2.1.2, the SIB1 scheduling is as follows :

The SystemInformationBlockType1 uses a fixed schedule with a periodicity of 80 ms and repetitions made within 80 ms.The first transmission of SystemInformationBlockType1 is scheduled in subframe #5 of radio frames for which the SFNmod 8 = 0, and repetitions are scheduled in subframe #5 of all other radio frames for which SFN mod 2 = 0.

This means that even though SIB1 periodicity is 80 ms, different copies (Redudancy version : RV) of the SIB1 is transmitted every 20ms. Meaning that at L3 you will see the SIB1 every 80 ms, but at PHY layer you will see it every 20ms. For the detailed RV assignment for each transmission, refer to 36.321 section 5.3.1 (the last part of the section)

One example of LTE SIB1 is as follows :

RRC_LTE:BCCH-DL-SCH-Message

BCCH-DL-SCH-Message ::= SEQUENCE

+-message ::= CHOICE [c1]

+-c1 ::= CHOICE [systemInformationBlockType1]

+-systemInformationBlockType1 ::= SEQUENCE [000]

+-cellAccessRelatedInfo ::= SEQUENCE [0]

| +-plmn-IdentityList ::= SEQUENCE OF SIZE(1..6) [1]

| | +-PLMN-IdentityInfo ::= SEQUENCE

| | +-plmn-Identity ::= SEQUENCE [1]

| | | +-mcc ::= SEQUENCE OF SIZE(3) OPTIONAL:Exist

| | | | +-MCC-MNC-Digit ::= INTEGER (0..9) [0]

| | | | +-MCC-MNC-Digit ::= INTEGER (0..9) [1]

| | | +-mnc ::= SEQUENCE OF SIZE(2..3) [2]

| | | +-MCC-MNC-Digit ::= INTEGER (0..9) [0]

| | | +-MCC-MNC-Digit ::= INTEGER (0..9) [1]

| | +-cellReservedForOperatorUse ::= ENUMERATED [notReserved]

| +-trackingAreaCode ::= BIT STRING SIZE(16) [0000000000000001]

| +-cellIdentity ::= BIT STRING SIZE(28) [0000000000000000000100000000]

| +-cellBarred ::= ENUMERATED [notBarred]

| +-intraFreqReselection ::= ENUMERATED [notAllowed]

| +-csg-Indication ::= BOOLEAN [FALSE]

| +-csg-Identity ::= BIT STRING OPTIONAL:Omit

+-cellSelectionInfo ::= SEQUENCE [0]

| +-q-RxLevMin ::= INTEGER (-70..-22) [-53]

| +-q-RxLevMinOffset ::= INTEGER OPTIONAL:Omit

+-p-Max ::= INTEGER OPTIONAL:Omit

+-freqBandIndicator ::= INTEGER (1..64) [7]

+-schedulingInfoList ::= SEQUENCE OF SIZE(1..maxSI-Message[32]) [2]

| +-SchedulingInfo ::= SEQUENCE

| | +-si-Periodicity ::= ENUMERATED [rf8]

| | +-sib-MappingInfo ::= SEQUENCE OF SIZE(0..maxSIB-1[31]) [0]

| +-SchedulingInfo ::= SEQUENCE

| +-si-Periodicity ::= ENUMERATED [rf8]

| +-sib-MappingInfo ::= SEQUENCE OF SIZE(0..maxSIB-1[31]) [1]

| +-SIB-Type ::= ENUMERATED [sibType3]

+-tdd-Config ::= SEQUENCE OPTIONAL:Omit

+-si-WindowLength ::= ENUMERATED [ms20]

+-systemInfoValueTag ::= INTEGER (0..31) [0]

+-nonCriticalExtension ::= SEQUENCE OPTIONAL:Omit

SIB 2

The important information on SIB2 is

i) RACH Configuration

ii) bcch, pcch, pdsch, pusch, pucch configuration

iii) sounding RS Configuration

iv) UE Timers

I would say SIB2 is the most important SIB in LTE and you will look into this SIB most frequently when you are implementing protocol stack and troubleshooting, since it defines the characteristics of the most physical channels.

If you have some issues at registration process especially before 'RRC Connection Reconfiguration'. The first part you have to check is SIB2 and check if UE properly decoded this and properly configure UE according to SIB2. Sometimes only one parameter mismatch of SIB2 between Network and UE can make difference between success and failure of the whole registration process.

Following is one example of SIB2. I looks to me that LTE SIB2 is similar to WCDMA SIB5 configuring various common channel.

RRC_LTE:BCCH-DL-SCH-Message

BCCH-DL-SCH-Message ::= SEQUENCE

+-message ::= CHOICE [c1]

+-c1 ::= CHOICE [systemInformation]

+-systemInformation ::= SEQUENCE

+-criticalExtensions ::= CHOICE [systemInformation-r8]

+-systemInformation-r8 ::= SEQUENCE [0]

+-sib-TypeAndInfo ::= SEQUENCE OF SIZE(1..maxSIB[32]) [1]

| +- ::= CHOICE [sib2]

| +-sib2 ::= SEQUENCE [00]

| +-ac-BarringInfo ::= SEQUENCE OPTIONAL:Omit

| +-radioResourceConfigCommon ::= SEQUENCE

| | +-rach-Config ::= SEQUENCE

| | | +-preambleInfo ::= SEQUENCE [0]

| | | | +-numberOfRA-Preambles ::= ENUMERATED [n52]

| | | | +-preamblesGroupAConfig ::= SEQUENCE OPTIONAL:Omit

| | | +-powerRampingParameters ::= SEQUENCE

| | | | +-powerRampingStep ::= ENUMERATED [dB2]

| | | | +-preambleInitialReceivedTargetPower ::= ENUMERATED [dBm-104]

| | | +-ra-SupervisionInfo ::= SEQUENCE

| | | | +-preambleTransMax ::= ENUMERATED [n6]

| | | | +-ra-ResponseWindowSize ::= ENUMERATED [sf10]

| | | | +-mac-ContentionResolutionTimer ::= ENUMERATED [sf48]

| | | +-maxHARQ-Msg3Tx ::= INTEGER (1..8) [4]

| | +-bcch-Config ::= SEQUENCE

| | | +-modificationPeriodCoeff ::= ENUMERATED [n4]

| | +-pcch-Config ::= SEQUENCE

| | | +-defaultPagingCycle ::= ENUMERATED [rf128]

| | | +-nB ::= ENUMERATED [oneT]

| | +-prach-Config ::= SEQUENCE

| | | +-rootSequenceIndex ::= INTEGER (0..837) [22]

| | | +-prach-ConfigInfo ::= SEQUENCE

| | | +-prach-ConfigIndex ::= INTEGER (0..63) [3]

| | | +-highSpeedFlag ::= BOOLEAN [FALSE]

| | | +-zeroCorrelationZoneConfig ::= INTEGER (0..15) [5]

| | | +-prach-FreqOffset ::= INTEGER (0..94) [2]

| | +-pdsch-Config ::= SEQUENCE

| | | +-referenceSignalPower ::= INTEGER (-60..50) [18]

| | | +-p-b ::= INTEGER (0..3) [0]

| | +-pusch-Config ::= SEQUENCE

| | | +-pusch-ConfigBasic ::= SEQUENCE

| | | | +-n-SB ::= INTEGER (1..4) [1]

| | | | +-hoppingMode ::= ENUMERATED [interSubFrame]

| | | | +-pusch-HoppingOffset ::= INTEGER (0..98) [4]

| | | | +-enable64QAM ::= BOOLEAN [FALSE]

| | | +-ul-ReferenceSignalsPUSCH ::= SEQUENCE

| | | +-groupHoppingEnabled ::= BOOLEAN [TRUE]

| | | +-groupAssignmentPUSCH ::= INTEGER (0..29) [0]

| | | +-sequenceHoppingEnabled ::= BOOLEAN [FALSE]

| | | +-cyclicShift ::= INTEGER (0..7) [0]

| | +-pucch-Config ::= SEQUENCE

| | | +-deltaPUCCH-Shift ::= ENUMERATED [ds2]

| | | +-nRB-CQI ::= INTEGER (0..98) [2]

| | | +-nCS-AN ::= INTEGER (0..7) [6]

| | | +-n1PUCCH-AN ::= INTEGER (0..2047) [0]

| | +-soundingRS-UL-Config ::= CHOICE [setup]

| | | +-setup ::= SEQUENCE [0]

| | | +-srs-BandwidthConfig ::= ENUMERATED [bw3]

| | | +-srs-SubframeConfig ::= ENUMERATED [sc0]

| | | +-ackNackSRS-SimultaneousTransmission ::= BOOLEAN [TRUE]

| | | +-srs-MaxUpPts ::= ENUMERATED OPTIONAL:Omit

| | +-uplinkPowerControl ::= SEQUENCE

| | | +-p0-NominalPUSCH ::= INTEGER (-126..24) [-85]

| | | +-alpha ::= ENUMERATED [al08]

| | | +-p0-NominalPUCCH ::= INTEGER (-127..-96) [-117]

| | | +-deltaFList-PUCCH ::= SEQUENCE

| | | | +-deltaF-PUCCH-Format1 ::= ENUMERATED [deltaF0]

| | | | +-deltaF-PUCCH-Format1b ::= ENUMERATED [deltaF3]

| | | | +-deltaF-PUCCH-Format2 ::= ENUMERATED [deltaF0]

| | | | +-deltaF-PUCCH-Format2a ::= ENUMERATED [deltaF0]

| | | | +-deltaF-PUCCH-Format2b ::= ENUMERATED [deltaF0]

| | | +-deltaPreambleMsg3 ::= INTEGER (-1..6) [4]

| | +-ul-CyclicPrefixLength ::= ENUMERATED [len1]

| +-ue-TimersAndConstants ::= SEQUENCE

| | +-t300 ::= ENUMERATED [ms1000]

| | +-t301 ::= ENUMERATED [ms1000]

| | +-t310 ::= ENUMERATED [ms1000]

| | +-n310 ::= ENUMERATED [n1]

| | +-t311 ::= ENUMERATED [ms1000]

| | +-n311 ::= ENUMERATED [n1]

| +-freqInfo ::= SEQUENCE [00]

| | +-ul-CarrierFreq ::= INTEGER OPTIONAL:Omit

| | +-ul-Bandwidth ::= ENUMERATED OPTIONAL:Omit

| | +-additionalSpectrumEmission ::= INTEGER (1..32) [1]

| +-mbsfn-SubframeConfigList ::= SEQUENCE OF OPTIONAL:Omit

| +-timeAlignmentTimerCommon ::= ENUMERATED [sf750]

+-nonCriticalExtension ::= SEQUENCE OPTIONAL:Omit

RRC : PRACH Preamble / RRC : RACH Response

I think this two steps can be best summerized by the following diagram. For the details, refer to http://www.sharetechnote.com/html/RACH_LTE.html

Interim Comments

From this point on, the L3 message carries both RRC and NAS messages. So you need to have overall understanding of NAS messages as well as RRC messages.

You need to understand all the details of TS 29.274 to handle to handle data traffic related IEs in NAS message. Of course it would be impossible to understand all those details within a day.. my approach is to go through following tables as often as possible until I get some big picture in my mind. You may have to go back and forth between 36.331 and 29.274.

* Table 7.2.2-1: Information Elements in a Create Session Response

* Table 7.2.3-1: Information Elements in a Create Bearer Request

* Table 7.2.3-2: Bearer Context within Create Bearer Request

* Table 7.2.5-1: Information Elements in a Bearer Resource Command

* Table 7.2.7-1: Information Elements in a Modify Bearer Request

* Table 7.2.8-1: Information Elements in a Modify Bearer Response

* Table 7.2.9.1-1: Information Elements in a Delete Session Request

* Table 7.2.9.2-1: Information Elements in a Delete Bearer Request

* Table 7.2.10.2-1: Information Elements in Delete Bearer Response

* Table 7.3.5-1: Information Elements in a Context Request

* Table 7.3.6-2: MME/SGSN UE EPS PDN Connections within Context Response

* Table 7.3.8-1: Information Elements in an Identification Request

RRC : RRC Connection Request

'RRC Connection Request' and 'RRC Connection Setup' procedure can be summerized as in following diagram. For the details, refer to http://www.sharetechnote.com/html/RACH_LTE.html (The message contents shown in the box is only an example. The HEX arrays you would see on your device and network would be different from what you see here. But overall structure should be similar to this)

Note : This example shows the case where Contention Resolution and RRC Connection Setup is being transmitted at a single step, but it is also possible that Contention Resolution and RRC Connection Setup message is transmitted as two separate process.

RRC : RRC Connection Setup

As you see in the following diagram, the most important IE (infomration element) in RRC Connection Setup message is "RadioResourceConfigDedicated" under which you can setup SRB, DRB, MAC and PHY config. Even thouth there is IEs related to DRB, in most case we setup only SRBs in RRC Connection Setup. It is similar to WCDMA RRC Connection setup message in which you usually setup only SRB (Control Channel Part) even though there is IEs for RB(Data Traffic).

One thing you have to notice is that you will find "RadioResourceCondigDedicated" IE not only in RRC Connection Setup message but also in RRC Connection Reconfiguration message. In that case, you have to be careful so that the one you set in RRC Connection Reconfig message properly match the one you set in RRC Connection Setup message. It means that you have to understand the correlation very clearly between RRC Connection Setup message and RRC Connection Reconfig message. This is also very similar to WCDMA case.

One example of RRC Connection Setup is as follows. As you see the contents below, main purpose of RRC Connection Setup message is to specify the MAC/RLC/PHY setup for SRB 0 and SRB 1 bearer. So if you make any mistake in this message, Network or UE will fail to decode messages that comes after this message.

Especially you have to be very careful about PhysicalConfigDedicated part. If you see one of the following issues after 'RRC Connection Setup', the first thing you have to check is PhysicalConfigDedicated. (You have to check all the detailed parameter and make it sure that UE properly decoded those information and properly configure itself according to the contents).

i) CRC Error for PUSCH

ii) UE log shows it transmit PUSCH, but Network log shows no PUSCH, not even CRC error

DL-CCCH-Message ::= SEQUENCE

+-message ::= CHOICE [c1]

+-c1 ::= CHOICE [rrcConnectionSetup]

+-rrcConnectionSetup ::= SEQUENCE

+-rrc-TransactionIdentifier ::= INTEGER (0..3) [0]

+-criticalExtensions ::= CHOICE [c1]

+-c1 ::= CHOICE [rrcConnectionSetup-r8]

+-rrcConnectionSetup-r8 ::= SEQUENCE [0]

+-radioResourceConfigDedicated ::= SEQUENCE [100101]

| +-srb-ToAddModList ::= SEQUENCE OF SIZE(1..2) [1] OPTIONAL:Exist

| | +-SRB-ToAddMod ::= SEQUENCE [11]

| | +-srb-Identity ::= INTEGER (1..2) [1]

| | +-rlc-Config ::= CHOICE [defaultValue] OPTIONAL:Exist

| | | +-defaultValue ::= NULL

| | +-logicalChannelConfig ::= CHOICE [defaultValue] OPTIONAL:Exist

| | +-defaultValue ::= NULL

| +-drb-ToAddModList ::= SEQUENCE OF OPTIONAL:Omit

| +-drb-ToReleaseList ::= SEQUENCE OF OPTIONAL:Omit

| +-mac-MainConfig ::= CHOICE [explicitValue] OPTIONAL:Exist

| | +-explicitValue ::= SEQUENCE [111]

| | +-ul-SCH-Config ::= SEQUENCE [11] OPTIONAL:Exist

| | | +-maxHARQ-Tx ::= ENUMERATED [n5] OPTIONAL:Exist

| | | +-periodicBSR-Timer ::= ENUMERATED [sf20] OPTIONAL:Exist

| | | +-retxBSR-Timer ::= ENUMERATED [sf320]

| | | +-ttiBundling ::= BOOLEAN [FALSE]

| | +-drx-Config ::= CHOICE [release] OPTIONAL:Exist

| | | +-release ::= NULL

| | +-timeAlignmentTimerDedicated ::= ENUMERATED [infinity]

| | +-phr-Config ::= CHOICE [setup] OPTIONAL:Exist

| | +-setup ::= SEQUENCE

| | +-periodicPHR-Timer ::= ENUMERATED [sf500]

| | +-prohibitPHR-Timer ::= ENUMERATED [sf200]

| | +-dl-PathlossChange ::= ENUMERATED [dB3]

| +-sps-Config ::= SEQUENCE OPTIONAL:Omit

| +-physicalConfigDedicated ::= SEQUENCE [1111001011] OPTIONAL:Exist

| +-pdsch-ConfigDedicated ::= SEQUENCE OPTIONAL:Exist

| | +-p-a ::= ENUMERATED [dB-3]

| +-pucch-ConfigDedicated ::= SEQUENCE [0] OPTIONAL:Exist

| | +-ackNackRepetition ::= CHOICE [release]

| | | +-release ::= NULL

| | +-tdd-AckNackFeedbackMode ::= ENUMERATED OPTIONAL:Omit

| +-pusch-ConfigDedicated ::= SEQUENCE OPTIONAL:Exist

| | +-betaOffset-ACK-Index ::= INTEGER (0..15) [9]

| | +-betaOffset-RI-Index ::= INTEGER (0..15) [6]

| | +-betaOffset-CQI-Index ::= INTEGER (0..15) [6]

| +-uplinkPowerControlDedicated ::= SEQUENCE [1] OPTIONAL:Exist

| | +-p0-UE-PUSCH ::= INTEGER (-8..7) [0]

| | +-deltaMCS-Enabled ::= ENUMERATED [en0]

| | +-accumulationEnabled ::= BOOLEAN [TRUE]

| | +-p0-UE-PUCCH ::= INTEGER (-8..7) [0]

| | +-pSRS-Offset ::= INTEGER (0..15) [3]

| | +-filterCoefficient ::= ENUMERATED [fc4] OPTIONAL:Exist

| +-tpc-PDCCH-ConfigPUCCH ::= CHOICE OPTIONAL:Omit

| +-tpc-PDCCH-ConfigPUSCH ::= CHOICE OPTIONAL:Omit

| +-cqi-ReportConfig ::= SEQUENCE [10] OPTIONAL:Exist

| | +-cqi-ReportModeAperiodic ::= ENUMERATED [rm30] OPTIONAL:Exist

| | +-nomPDSCH-RS-EPRE-Offset ::= INTEGER (-1..6) [0]

| | +-cqi-ReportPeriodic ::= CHOICE OPTIONAL:Omit

| +-soundingRS-UL-ConfigDedicated ::= CHOICE OPTIONAL:Omit

| +-antennaInfo ::= CHOICE [defaultValue] OPTIONAL:Exist

| | +-defaultValue ::= NULL

| +-schedulingRequestConfig ::= CHOICE [setup] OPTIONAL:Exist

| +-setup ::= SEQUENCE

| +-sr-PUCCH-ResourceIndex ::= INTEGER (0..2047) [20]

| +-sr-ConfigIndex ::= INTEGER (0..155) [30]

| +-dsr-TransMax ::= ENUMERATED [n4]

+-nonCriticalExtension ::= SEQUENCE OPTIONAL:Omit

< Note 1 >

+-pdsch-ConfigDedicated ::= SEQUENCE OPTIONAL:Exist

| +-p-a ::= ENUMERATED [dB-3]

: transmission power is calculated according to Section 5.2 of 3GPP TS36.213 from the reference signal power and the values of the P_A and P_B parameters specified for this procedure. These parameters set the PDSCH transmission power differences between symbols with and without RS.

Unproper settings for this value would cause large amount of CRC errors on PDSCH reception on UE side, resulting in a lot of HARQ NACK from UE.

< Note 2 >

If you see SRB-ToAddMod IE, you would see a couple of Default Value. What does this mean ?

Following two sections of 36.331 will give you the answer.

9.1.2 SRB configurations
9.2 Default radio configurations

RRC : RRC Connection Setup Complete + NAS : Attach Request + ESM : PDN Connectivity Request

This step would be one of very important steps during the initial registration process mainly because UE send a lot of it's capability information (especailly NAS layer capability information) to the core network.

As you see this step carries two important NAS message as follows.

NAS : Attach Request : The most important information carried by this message would be UE capability in terms of ciphering and integrity. If you don't do proper following step (especially at Attach accept step) based on the information on this, UE will fail to registration. Even bigger problem is that the failure mode of registration varies depending UE protocol stack implementation. So in many case it is very hard to find the root cause of the problem.

ESM : PDN Connectivity Request : The most information of this message would be the protocol configuration options (PCO). From this you can figure out what kind of packet service UE support or want to get supported. If you don't properly handle this information, it will also result in registration failure and the failure mode would vary depending on UE implementation.

Attach request ::= DIVISION

+-Security header type ::= V

| +-Security header type ::= CHOICE [Plain NAS message, not security protected]

+-EPS mobility management protocol discriminator ::= V

| +-Protocol discriminator ::= PD [7]

+-Attach request message identity ::= V

| +-Message type ::= MSG [41]

+-NAS key set identifier ::= V

| +-TSC ::= CHOICE [native security context (for KSI ASME)]

| +-NAS key set identifier ::= CHOICE [possible values for the NAS key set identifier 1]

+-EPS attach type ::= V

| +-Spare ::= FIX [0]

| +-EPS attach type value ::= CHOICE [EPS attach]

+-Old GUTI or IMSI ::= LV

| +-Octet1 ::= DIVISION

| | +-Length of EPS mobile identity contents ::= LEN (0..255) [11]

| +-Octet2 ::= DIVISION

| | +-Spare ::= FIX [F]

| | +-Odd/even indication ::= CHOICE [even number of identity digits and also when the GUTI is used]

| | +-Type of identity ::= CHOICE [GUTI]

| +-Octet3 ::= DIVISION

| | +-MCC digit 2 ::= INT (0..15) [0]

| | +-MCC digit 1 ::= INT (0..15) [0]

| +-Octet4 ::= DIVISION

| | +-MNC digit 3 ::= INT (0..15) [15]

| | +-MCC digit 3 ::= INT (0..15) [1]

| +-Octet5 ::= DIVISION

| | +-MNC digit 2 ::= INT (0..15) [1]

| | +-MNC digit 1 ::= INT (0..15) [0]

| +-Octet6 ::= DIVISION

| | +-MME Group ID ::= INT (0..255) [0]

| +-Octet7 ::= DIVISION

| | +-MME Group ID(continued) ::= INT (0..255) [1]

| +-Octet8 ::= DIVISION

| | +-MME Code ::= INT (0..255) [1]

| +-Octet9 ::= DIVISION

| | +-M-TMSI ::= INT (0..255) [18]

| +-Octet10 ::= DIVISION

| | +-M-TMSI(continued) ::= INT (0..255) [52]

| +-Octet11 ::= DIVISION

| | +-M-TMSI(continued) ::= INT (0..255) [86]

| +-Octet12 ::= DIVISION

| +-M-TMSI(continued) ::= INT (0..255) [120]

+-UE network capability ::= LV

| +-Octet1 ::= DIVISION

| | +-Length of UE network capability contents ::= LEN (0..255) [2]

| +-Octet2 ::= DIVISION

| | +-EEA0 ::= CHOICE [EPS encryption algorithm EEA0 supported]

| | +-128-EEA1 ::= CHOICE [EPS encryption algorithm 128-EEA1 supported]

| | +-128-EEA2 ::= CHOICE [EPS encryption algorithm 128-EEA2 supported]

| | +-EEA3 ::= CHOICE [EPS encryption algorithm EEA3 not supported]

| | +-EEA4 ::= CHOICE [EPS encryption algorithm EEA4 not supported]

| | +-EEA5 ::= CHOICE [EPS encryption algorithm EEA5 not supported]

| | +-EEA6 ::= CHOICE [EPS encryption algorithm EEA6 not supported]

| | +-EEA7 ::= CHOICE [EPS encryption algorithm EEA7 not supported]

| +-Octet3 ::= DIVISION

| | +-spare ::= FIX [0]

| | +-128-EIA1 ::= CHOICE [EPS integrity algorithm 128-EIA1 supported]

| | +-128-EIA2 ::= CHOICE [EPS integrity algorithm 128-EIA2 supported]

| | +-EIA3 ::= CHOICE [EPS integrity algorithm EIA3 not supported]

| | +-EIA4 ::= CHOICE [EPS integrity algorithm EIA4 not supported]

| | +-EIA5 ::= CHOICE [EPS integrity algorithm EIA5 not supported]

| | +-EIA6 ::= CHOICE [EPS integrity algorithm EIA6 not supported]

| | +-EIA7 ::= CHOICE [EPS integrity algorithm EIA7 not supported]

| +-Octet4 ::= DIVISION

| | +-UEA0 ::= CHOICE [UMTS encryption algorithm UEA0 not supported]

| | +-UEA1 ::= CHOICE [UMTS encryption algorithm UEA1 not supported]

| | +-UEA2 ::= CHOICE [UMTS encryption algorithm UEA2 not supported]

| | +-UEA3 ::= CHOICE [UMTS encryption algorithm UEA3 not supported]

| | +-UEA4 ::= CHOICE [UMTS encryption algorithm UEA4 not supported]

| | +-UEA5 ::= CHOICE [UMTS encryption algorithm UEA5 not supported]

| | +-UEA6 ::= CHOICE [UMTS encryption algorithm UEA6 not supported]

| | +-UEA7 ::= CHOICE [UMTS encryption algorithm UEA7 not supported]

| +-Octet5 ::= DIVISION

| | +-UCS2 ::= CHOICE [The UE has a preference for the default alphabet (defined in 3GPP TS 23.038 [3]) over UCS2 (see ISO/IEC 10646 [29])]

| | +-UIA1 ::= CHOICE [UMTS integrity algorithm UIA1 not supported]

| | +-UIA2 ::= CHOICE [UMTS integrity algorithm UIA2 not supported]

| | +-UIA3 ::= CHOICE [UMTS integrity algorithm UIA3 not supported]

| | +-UIA4 ::= CHOICE [UMTS integrity algorithm UIA4 not supported]

| | +-UIA5 ::= CHOICE [UMTS integrity algorithm UIA5 not supported]

| | +-UIA6 ::= CHOICE [UMTS integrity algorithm UIA6 not supported]

| | +-UIA7 ::= CHOICE [UMTS integrity algorithm UIA7 not supported]

| +-Octet6 ::= DIVISION

| | +-spare ::= FIX [0]

| | +-1xSRVCC ::= CHOICE [SRVCC from E-UTRAN to cdma2000 1xCS not supported]

| | +-spare ::= FIX [0]

| +-Octet7-14 ::= DIVISION

| +-Spare ::= OCTETARRAY SIZE(0..8) [00]

+-ESM message container ::= LV-E

| +-Octet1-Octet2 ::= DIVISION

| | +-Length of ESM message container ::= LEN (0..65535) [23]

| +-Octet3- ::= DIVISION

| +-ESM message container contents ::= OCTETARRAY SIZE(0..65535)

[0201D031D1271080000100000300000A00000C00000D00]

+-Old P-TMSI signature ::= TV OPTIONAL:Omit

| +-Octet1 ::= DIVISION

| | +-P-TMSI signature IEI ::= IEI [19]

| +-Octet2-4 ::= DIVISION

| +-P-TMSI signature value ::= INT (0..16777215) [0]

+-Additional GUTI ::= TLV OPTIONAL:Omit

| +-Octet1 ::= DIVISION

| | +-EPS mobile identity IEI ::= IEI [50]

| +-Octet2 ::= DIVISION

| | +-Length of mobile identity IEI ::= LEN (0..255) [1]

| +-Octet3 ::= DIVISION

| | +-Identity digit 1 ::= INT (0..15) [0]

| | +-Odd/even indication ::= CHOICE [even number of identity digits and also when the GUTI is used]

| | +-Type of identity ::= CHOICE [IMSI]

| +-Octet4 ::= DIVISION

| +-Identity digit p ::= OCTETARRAY SIZE(0..10)

+-Last visited registered TAI ::= TV OPTIONAL:Exist

| +-Octet1 ::= DIVISION

| | +-Tracking area identity IEI ::= IEI [52]

| +-Octet2 ::= DIVISION

| | +-MCC digit 2 ::= INT (0..15) [1]

| | +-MCC digit 1 ::= INT (0..15) [3]

| +-Octet3 ::= DIVISION

| | +-MNC digit 3 ::= INT (0..15) [0]

| | +-MCC digit 3 ::= INT (0..15) [1]

| +-Octet4 ::= DIVISION

| | +-MNC digit 2 ::= INT (0..15) [8]

| | +-MNC digit 1 ::= INT (0..15) [4]

| +-Octet5 ::= DIVISION

| | +-TAC ::= INT (0..255) [0]

| +-Octet6 ::= DIVISION

| +-TAC(continued) ::= INT (0..255) [1]

+-DRX parameter ::= TV OPTIONAL:Omit

+-MS network capability ::= TLV OPTIONAL:Omit

+-Old location area identification ::= TV OPTIONAL:Omit

+-TMSI status ::= TV OPTIONAL:Omit

+-Mobile Station Classmark 2 ::= TLV OPTIONAL:Omit

+-Mobile Station Classmark 3 ::= TLV OPTIONAL:Omit

+-Supported Codecs ::= TLV OPTIONAL:Omit

If you decode the ESM message container contents part, you will get the following contents.

NAS_LTE:ESM,PDN connectivity request

PDN connectivity request ::= DIVISION

+-EPS bearer identity ::= V

| +-EPS bearer identity value ::= CHOICE [No EPS bearer identity assigned]

+-EPS session management protocol discriminator ::= V

| +-Protocol discriminator ::= PD [2]

+-Procedure transaction identity ::= V

| +-Procedure transaction identity ::= CHOICE [Procedure transaction identity value 1]

+-PDN connectivity request message identity ::= V

| +-Message type ::= MSG [D0]

+-PDN type ::= V

| +-spare ::= FIX [0]

| +-PDN type value ::= CHOICE [IPv4v6]

+-Request type ::= V

| +-Spare ::= FIX [0]

| +-Request type value ::= CHOICE [initial request]

+-ESM information transfer flag ::= TV OPTIONAL:Exist

| +-Octet1 ::= DIVISION

| +-ESM information transfer flag IEI ::= IEI [D-]

| +-spare ::= FIX [0]

| +-EIT value ::= CHOICE [security protected ESM information transfer required]

+-Access point name ::= TLV OPTIONAL:Omit

| +-Octet1 ::= DIVISION

| | +-Access point name IEI ::= IEI [28]

| +-Octet2 ::= DIVISION

| | +-Length of access point name contents ::= LEN (0..255) [0]

| +-Octet3-Octet102 ::= DIVISION

| +-Access point name value ::= OCTETARRAY SIZE(0..100)

+-Protocol configuration options ::= TLV OPTIONAL:Exist

+-Octet1 ::= DIVISION

| +-Protocol configuration options IEI ::= IEI [27]

+-Octet2 ::= DIVISION

| +-Length of protocol config options contents ::= LEN (0..255) [16]

+-Octet3 ::= DIVISION

| +-ext ::= EXT1 [1]

| +-spare ::= FIX [0]

| +-Configuration protocol ::= CHOICE [PPP for use with IP PDP type]

+-Octet4-Octet253 ::= DIVISION

+-protocol config options contents ::= OCTETARRAY SIZE(0..250) [000100000300000A00000C00000D00]

There are couple of important information in this message as described below.

ESM information transfer flag : According to Step 9a1 of Table 4.5.2.3-1: UE registration procedure (state 1 to state 2) of 36.508, Network has to go through ESM : Information Request as described below.

IF the UE sets the ESM information transfer flag in the last PDN CONNECTIVITY REQUEST message THEN the SS transmits an ESM INFORMATION REQUEST message to initiate exchange of protocol configuration options and/or APN

PDN Type : specifies IP version that the UE wants to use for EPS Bearer and Network may or may not use the same IP version in Default (or Dedicated) EPS Bearer Context Request. Some UE would accept whatever IP version is specified by the network at EPS Bearer establishment step, but some UE fail to setup EPS bearer if the IP version Network specify in Default (or Dedicated) EPS Bearer Context Request does not match the PDN type in this message.

Access Point Name : UE shows many different behavior related to this APN name. Followings are some of the behavior that I observed from a couple of difference devices.

i) UE does not specify any APN here and accept whatever Network specifies in Activate Default EPS Bearer Context Request.

ii) UE specify a specific APN here, but it accept whatever Network specifies in Activate Default EPS Bearer Context Request.

iii) UE specify a specific APN here, but it reject the APN that Network specifies in Activate Default EPS Bearer Context Request if it is different from what UE specified here.

Protocol Configuration Options : You can get the detailed information from this protocol config options contents from TS24_008 10.5.6.3 Protocol configuration options which can be summarized as follows.

This is a pretty complicated topic. So I will describe this on a separate post here.

RRC : DL Information Transfer + NAS : Authentication Request

RRC : UL Information Transfer + NAS : Authentication Response

"Authentication" process is a process similar to 'log in' process when you use a computer. In C2K and GSM, this authentication process is 'uni-directional', meaning that only Network authenticate UE and UE does not authenticate the network. As you may easily guess, this would cause a serious security problem. If I make a fake network which accept any UE, I can cheat a UE to camp on the fake network rather than the one the UE is supposed to camp on to. (But this kind of 'uni directional' authentication would make it so easy to test a UE using network simulator -:)

To improve this security issues, in LTE (in WCDMA as well) they do 'bi-directional' authentication, meaning that UE has to pass the authentication process and Newtork also has to pass the process as well.

The overall authentication process is as follows.

There are three main components of this authentication process :

i) Input Parameters

ii) Authentication Algorithm

iii) Output Values (calcuated by Authentication Algorithm using the Input Parameters).

Both UE and Network uses the same Input Parameters and the same Authentication Algorithms, so they both should produce the same Output Values, otherwise Authentication fails.

One thing you have to keep in mind is that UE and Network exchange only Input Parameters and Output values, not the authentication Algorithm. Authentication Algorithm on UE side is stored in USIM and Authentication Algorithm on NW side is stored in Authentication Center. Both UE and NW just assume that they would use the identical algorithms.

Normally use use diffent Authentication Algorithm for testing and for live network. The most commonly used algorithm for testing is what we often call "Dummy XOR" algorithm which is defined in 36.508 section 4.9 Common test USIM parameters for LTE and 34.408 section 8 Test USIM Parameters for WCDMA.

The most common used algorithm in live network (as far as I know) is Milenage algorithm.

One example of Authentication Request and Authentication Response is as follows. You would notice that RAND, AUTN are carried by Authentication Request message and RES value is carried by Authentication Response.

NAS_LTE:EMM,Authentication request

Authentication request ::= DIVISION

+-Security header type ::= V

| +-Security header type ::= CHOICE [Plain NAS message, not security protected]

+-EPS mobility management protocol discriminator ::= V

| +-Protocol discriminator ::= PD [7]

+-Authentication request message type ::= V

| +-Message type ::= MSG [52]

+-Spare half octet ::= V

| +-Spare half octet ::= FIX [0]

+-NAS key set identifier ASME ::= V

| +-TSC ::= CHOICE [native security context (for KSI ASME)]

| +-NAS key set identifier ::= CHOICE [possible values for the NAS key set identifier 0]

+-Authentication parameter RAND ::= V

| +-Octet1-Octet16 ::= DIVISION

| +-RAND value ::= OCTETARRAY SIZE(16..16) [A3DE0C6D363E30C364A4078F1BF8D577]

+-Authentication parameter AUTN ::= LV

+-Octet1 ::= DIVISION

| +-Length of AUTN contents ::= LEN (0..255) [16]

+-Octet2-Octet17 ::= DIVISION

+-AUTN ::= OCTETARRAY SIZE(0..16) [5E726B56B4EC9001A3CF2E5E726BC6B5]

NAS_LTE:EMM,Authentication response

Authentication response ::= DIVISION

+-Security header type ::= V

| +-Security header type ::= CHOICE [Plain NAS message, not security protected]

+-EPS mobility management protocol discriminator ::= V

| +-Protocol discriminator ::= PD [7]

+-Authentication response message identity ::= V

| +-Message type ::= MSG [53]

+-Authentication response parameter ::= LV

+-Octet1 ::= DIVISION

| +-Length of Authentication response parameter contents ::= LEN (0..255) [8]

+-Octet2-17 ::= DIVISION

+-RES ::= OCTETARRAY SIZE(0..16) [A3CF2E5E726B56B4]

RRC : DL Information Transfer + NAS : Security Mode Command

Security Mode Command message to inform the UE of the following information (instructions).

i) I (Newtork) am capable of these kinds of ciphering (encryption) algorithms

ii) I (Newtork) am capable of these kinds of integrity algorithms

iii) Among those ciphering algorithm which I am capable of, I will be using "this specific algorithm" for the communication with you (UE).

iv) Among those integrity algorithm which I am capable of, I will be using "this specific algorithm" for the communication with you (UE)

In LTE, they are using separate Security Mode process for NAS and RRC, whereas in WCDMA only one security mode process (RRC only) was used (NAS is indirectly protected since NAS message was embedded in RRC and protected as a part of RRC message). The part marked in blue is for item i) and ii) listed above and the part marked in red is for item iii) and iv).

NAS_LTE:EMM,Security mode command

Security mode command ::= DIVISION

+-Security header type ::= V

| +-Security header type ::= CHOICE [Plain NAS message, not security protected]

+-EPS mobility management protocol discriminator ::= V

| +-Protocol discriminator ::= PD [7]

+-Security mode command message identity ::= V

| +-Message type ::= MSG [5D]

+-Selected NAS security algorithms ::= V

| +-Octet1 ::= DIVISION

| +-spare ::= FIX [0]

| +-Type of ciphering algorithm ::= CHOICE [EPS encryption algorithm EEA0(ciphering not used)]

| +-spare ::= FIX [0]

| +-Type of integrity protection algorithm ::= CHOICE [Reserved 0]

+-Spare half octet ::= V

| +-Spare half octet ::= FIX [0]

+-NAS key set identifier ::= V

| +-TSC ::= CHOICE [native security context (for KSI ASME)]

| +-NAS key set identifier ::= CHOICE [possible values for the NAS key set identifier 0]

+-Replayed UE security capabilities ::= LV

| +-Octet1 ::= DIVISION

| | +-Length of UE security capability contents ::= LEN (0..255) [2]
